How Custom Inserts Improve Vape Cartridge Protection

Vape cartridges are being particularly vulnerable due to the presence of fragile glass/ceramic reservoirs that hold silky oil which is prone to damage even when one hits the floor, vibrates or even changes its position. Breakage may cause the glass to be cracked and leakage due to pressure changes or misalignment or is caused by lack of seating components on transit. Most failures with regard to packing occur within the box despite having a well-built outer package since the cartridge is left to swing around or when it is under intense pressure.

The widespread misconception that exists among the brands is that a fixed outer box is the only way of securing the product. As a matter of fact, custom inserts represent the major process that inhibits the motion, absorbs shock, and cushions the vape cartridges under the conditions of real logistics. In the case of vape cartridges, the protection needed can be obtained by means of accurate engineering on the insert that governs the movement, absorbs the impact, and ensures the structural reliability inside the supply chain.

Talking of reliable performance when it comes to the insert solutions to cartridge packaging, vape cartridge packaging boxes that integrate precise internal support.

Why Vape Cartridges Require Insert-Based Protection

In the case of vape cartridges, the protection is based on an insert that is required due to the inherent vulnerability of such a product to the dynamic loads of vibration, drops, or pressure during stacking, since their case consists of thin glass walls, ceramic heating elements, and sealed oil chambers.

Glass cracking is caused either through direct hits or flexing and leaks can be caused by internal pressure changes which push oil beyond seals. The lack of control in the movement within the packaging will only deepen these problems, with even minimal movement having the potential of reconstructing the parts or placing the pressure on the weak points.

Such risks are heightened during shipping when packages withstand stacking, dropping, and temperature variation which not only causes oil viscosity but also heightening the leak risks.

How Custom Inserts Reduce Movement and Impact Damage

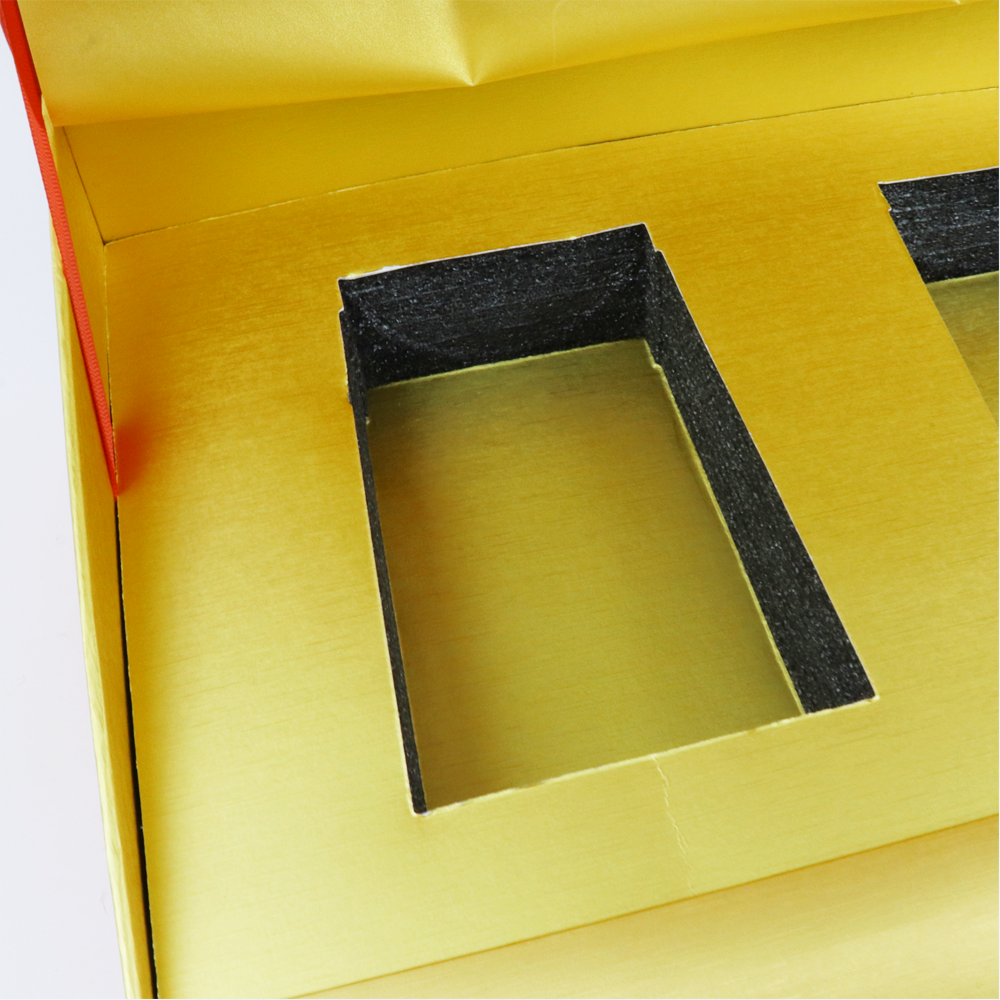

The custom inserts help to minimize the movement and impact damage by making a tight, custom fit that immobilizes the cartridge and keeps it safe against forces outside of its shell.

The rattling and shifting of a loose-fit insert is passed on to the delicate parts such as glass joints, or coil connections. A precision-fit insert, on the other hand, is used to hold the cartridge solidly in place, spreading out the impact of any shock and reducing relative movement. One way consists of toleration control, in which the cavity sizes are maintained at a tight tolerance so that the tolerance remains consistent even between batches of productions.

This strategy goes directly to this vulnerability observed in the actual handling where, in the real world, loose packaging may increase rates of damages.

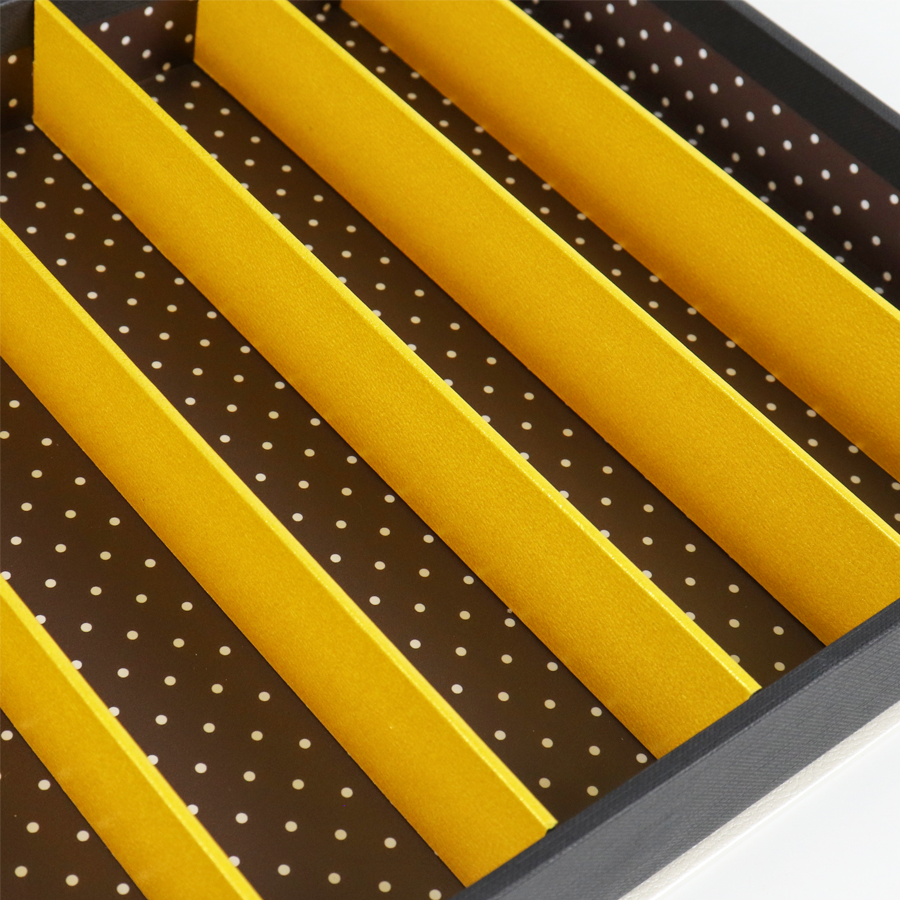

Common Insert Materials Used in Vape Cartridge Packaging

The choice of material will determine the level of protection since they all trade-off cushioning, rigidity, density and rebound. The suitable material should be used to store the cartridge in place without pressuring it when weight is applied or it should not rebound and release it.

Common choices include:

The use of EVA foam in high-impact conditions is very effective as it can withstand compression as compared to the use of moulded pulp which is rigid but beneficial to the environment when the brands are more concerned about sustainability.

Insert Design Precision and Its Impact on Protection Performance

The design precision has a direct effect on the protection performance as even slight changes in the size or depth of the cavity may permit undesired motion or form pressure areas resulting in failure.

Due to the manufacturing tolerances, cartridges have a slightly varying diameter and length and, therefore, the insert cavities need to fit within a few millimeters. Minor inaccuracies cause either too much play (rattling and impact), or too tight fits (compression damage potential and difficult to insert). In repeated orders, accruing tolerances, between groups of cartridges and between inserts cut, can add up such that what was once an edge-case fit would become regular poor performance.

Close monitoring here distinguishes dependable packing and incidences of intermittency.

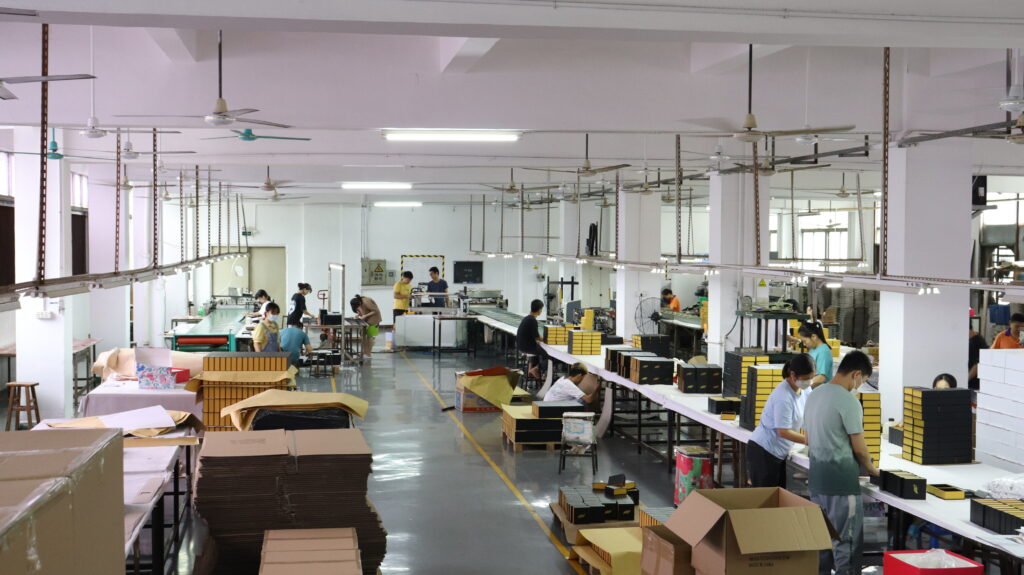

Manufacturing and Quality Control Challenges With Custom Inserts

The quality requirements of insert must be equal to those of the outer box since any inconsistency in the internal fit will invalidate the whole protection system, however strong the exterior may be.

Mass production brings with itself such challenges as die wear, variation in material density, and change in cutting accuracy. Uneven compression may occur when the uneven foams are not die cut to the dielectric, whereas paperboard inserts are prone to delamination in the presence of humidity. QC should have certain tests: checking the cavity dimensions with calipers or gauges, testing fitting with sample cartridges, rebound, and drop-simulation tests to ensure that it does not move. Multi-level inspection Raw material, post-cutting, final assembly and Multi-level checks are used to early detect the deviations.

Common Mistakes Brands Make With Vape Cartridge Inserts

BlackBerry Vape Cartridge Inserts Common Mistakes Brands make with vape cartridge inserts.

• Brands usually damage upon the performance of inserts by making unnecessary errors that are created by focusing on cost or appearance instead of engineering.
• Being provided with generic inserts that cannot be customized in terms of size, they can move regardless of having a high-end outer box.
• Spearheaded by aesthetics, selecting materials that look good instead of fit well.
• Disregarding tolerance accumulation between batches of cartridges and inserts resulting in variable protection when repeating a single run.
• A failure to do insert-specific testing: Vibration or drop protocols, and instead, a simple certification of outer box.

Such mistakes often lead to the rise in the number of damage claims regardless of the investment in the rigidity of the exterior.

Conclusion — Insert Engineering Is Central to Cartridge Protection

The defense of vape cartridges requires less decorative packaging but more accurate engineering of their inserts controlling movement, absorbing impact and a similar performance between batches of production.

Outer boxes offer primary protection, but the actual selection of durability in the real world is given by the insert system. By emphasizing accuracy in the fit, material choice and manufacturing control, the chance of ending up with cartridges that are already damaged is less, thereby resulting in the lessening of waste and preserving the integrity of the goods in question between the factory and the final customer.
